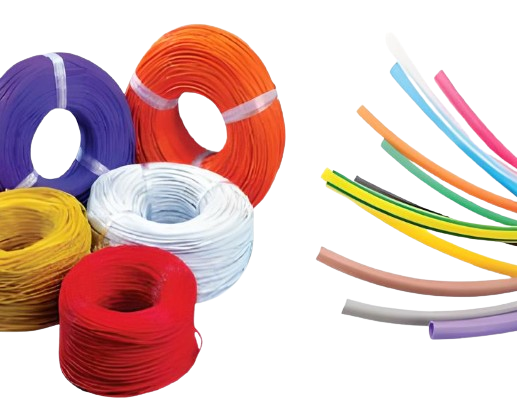

House Wires consists of an electrical wiring system that distributes energy to be used in equipment and appliances around the house. It also involves the proper installation and operation of the electrical outlets, switches, breakers, meter base and different electrical circuits. Homes typically have several kinds of house wiring including electrical wiring for lighting and power distribution, permanently installed and portable appliances, telephone, heating or ventilation system control, increasingly for home theatre and computer networks. Solsquare is manufacturing a new range of electrical wires known as FR+HR/FRLS-H/ZHFR insulated wires, which provides additional safety and security. The wires are insulated with a flame-retardant compound, which helps to control the spread of fire even at very high temperature. It also protects against electrical shock and short circuit.
EC Grade Flexible Copper Class 5 Conductor
FR+HR/FRLS-H/ZHFR Insulation compound with a high insulation resistance value (-15°C to +70°C / +90°C/ +105°C)
Red, Blue, Black, Green & Yellow
Fixed installation in conduits and under plaster for Power Distribution to electrical appliances & Lighting in Houses, Commercial Complexes, Shopping Malls, Buildings, Industries, Hospitals, Apartments etc, where fire and electrical safety is most important.
Sr. No. | Nominal Size in Sq. mm | No./Max. dia of strands (mm) | Nominal Insulation Thickness (mm) | Max. Overall Diameter (mm) | Conductor Resistance at 20°C (Max) ohms/km | Current Rating (Ampere) | |
---|---|---|---|---|---|---|---|
Casing | Concealed | ||||||
1 | 0.50 | 16/0.20 | 0.6 | 2.3 | 39.0 | 4.8 | 4.2 |
2 | 0.75 | 24/0.20 | 0.6 | 2.9 | 26.0 | 9.0 | 8.0 |
3 | 1.00 | 14/0.30 | 0.7 | 3.2 | 18.10 | 14 | 13 |
4 | 1.50 | 22/0.30 | 0.7 | 3.5 | 12.10 | 18 | 16 |
5 | 2.50 | 36/0.30 | 0.8 | 4.2 | 7.41 | 24 | 20 |
6 | 4.00 | 56/0.30 | 0.8 | 4.9 | 4.95 | 32 | 26 |
7 | 6.00 | 84/0.30 | 0.8 | 5.5 | 3.30 | 42 | 35 |
8 | 10 | 80/0.40 | 1.0 | 6.60 | 1.91 | 51 | 42 |
9 | 16 | 126/0.40 | 1.0 | 7.60 | 1.21 | 68 | 57 |
10 | 25 | 196/0.40 | 1.2 | 9.70 | 0.780 | 86 | 71 |
11 | 35 | 276/0.40 | 1.2 | 10.60 | 0.554 | 110 | 91 |
12 | 50 | 396/0.40 | 1.4 | 12.50 | 0.386 | 140 | 120 |
